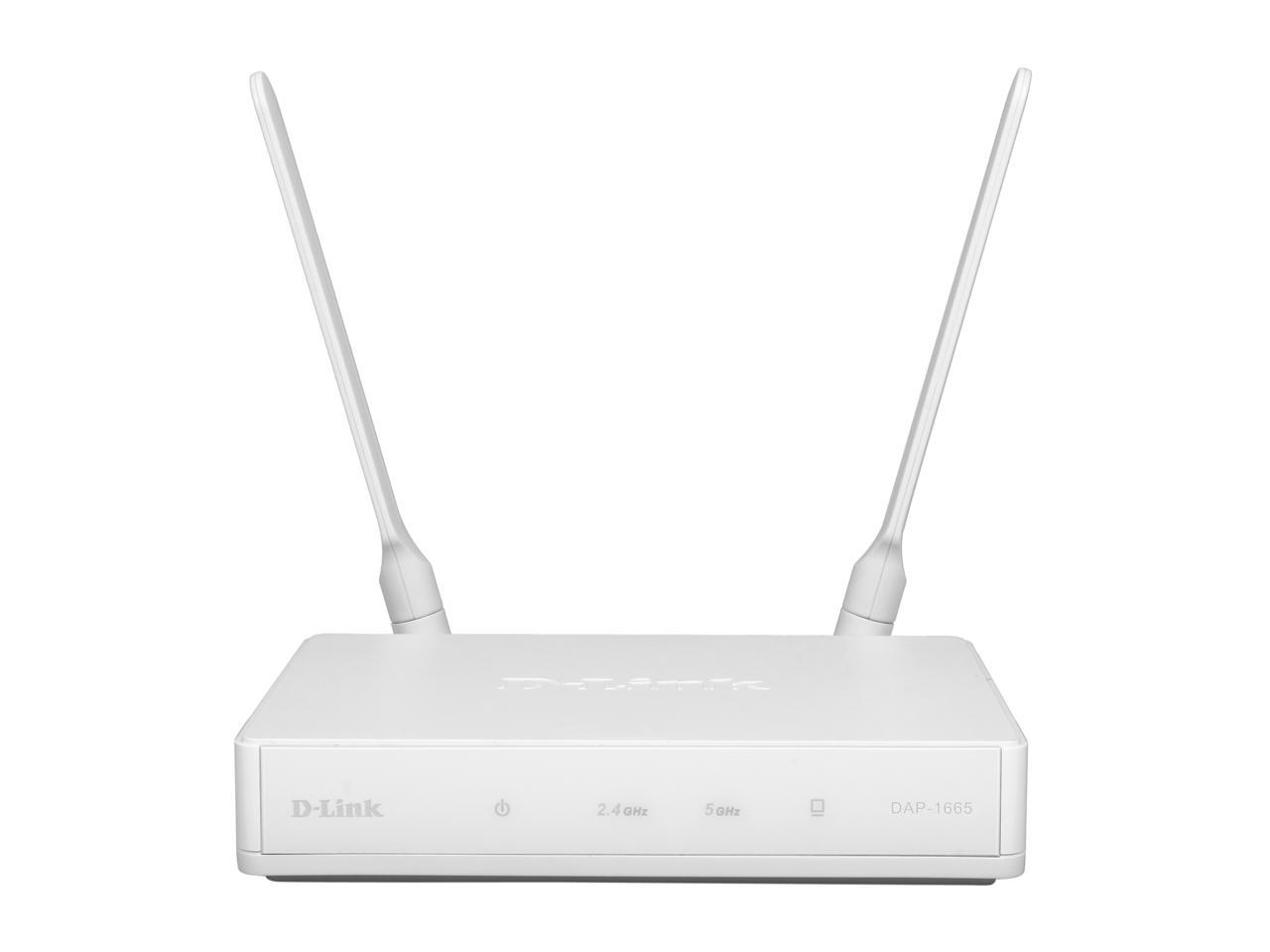

Wireless AC 1200 2 X 5 dbi antenna (DAP-1665/ESG)

by D-Link
₱5,840.00

Technical Specifications

Technical Specifications

General

Networking Standards

  • IEEE 802.11ac Wave 2
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • 802.3/802.3u

Interface

  • IEEE 802.11ac Wave 2 wireless LAN
  • IEEE 802.11n/g/b/a wireless LAN
  • 10/100/1000BASE-TX wired LAN

Operating Modes

  • Access Point (AP)
  • Bridge
  • Bridge with AP
  • Wireless Client
  • Repeater
  • WISP Client Router
  • WISP Repeater

Operating Frequency

  • 5 GHz Band:
  • 5.15 GHz to 5.35 GHz
  • 5.47 GHz to 5.85 GHz
  • 2.4 GHz Band:
  • 2.4 - 2.4835 GHz

Antenna

  • 2 x external antennas
    • 3 dBi for 2.4 GHz
    • 5 dBi for 5 GHz

LEDs

  • Power
  • 2.4 GHz wireless
  • 5 GHz wireless
  • LAN

Advanced Features

Security

  • WPA-PSK/WPA2-PSK
  • Wi-Fi Protected Setup (WPS)
  • MAC address filtering
  • Kensington security slot
  • SSID broadcast disable

Device Management

  • Web-based interface minimum requirements:
  • Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0

Physical

Dimensions

  • 147 x 108 x 27.8 mm (5.79 x 4.25 x 1.1 inches)

Weight

  • 222 grams (0.489 lbs)

Power

  • Input: 12 V/1 A
  • Consumption: Maximum 5.18 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • FCC
  • TELEC
  • IC
  • Wi-Fi Certified
  • VCCI

1. Maximum wireless signal rate derived from 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
