Description

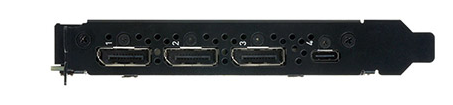

NVIDIA Quadro RTX4000
- Turing GPU
- 2,304 NVIDIA® CUDA® Cores
- 288 NVIDIA® Tensor Cores
- 36 NVIDIA® RT Cores
- 8GB GDDR6 Memory
- Up to 416GB/s Memory Bandwidth
- 43T RTX-OPS
- 6.0 Giga Rays/s Rays Cast
- 7.1 TFLOPS FP32 Performance
- 14.2 TFLOPS FP16 Performance
- 28.5 TOPS INT8 Performance
- 57.0 TFLOPS of Tensor Operation
- Max. Power Consumption: 160W
- 3x DisplayPort 1.4
- 1x VirtualLink
Specifications
CUDA Parallel Processing cores | 2304 |
NVIDIA Tensor Cores | 288 |
NVIDIA RT Cores | 36 |
Frame Buffer Memory | 8 GB GDDR6 |
RTX-OPS | 43T |
Rays Cast | 8 Giga Rays/Sec |
Peak Single Precision (FP32) Performance | 7.1 TFLOPS |
Peak Half Precision (FP16) Performance | 14.2 TFLOPS |
Peak Integer Operation (INT8) Performance | 28.5 TOPS |
Deep Learning TeraFLOPS1 | 57.0 TFLOPS |
Memory Interface | 256-bit |
Memory Bandwidth | Up to 416 GB/s |
Max Power Consumption | 160 W |
Graphics Bus | PCI Express 3.0 x 16 |
Display Connectors | DP 1.4 (3) + VirtualLink (1) |
Form Factor | 4.4” H x 9.5” L |
Product Weight | 479 g |
Thermal Solution | Active |
NVIDIA® 3D Vision®and 3D Vision Pro | Support via 3 pin mini DIN |
Frame Lock | Compatible (with Quadro Sync II) |
NVLink Interconnect | N/A |
Power Connector | 8-pin PCIe |
1 FP16 matrix multiply with FP16 or FP32 accumulate
Supported Platforms
- Microsoft Windows 10 (64-bit)
- Microsoft Windows 8 and 8.1 (64-bit)
- Microsoft Windows 7 (64-bit)
- Linux® - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA® GigaThread™ engine with 3 async copy engines
- Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and
- later), and Flash (10.1 and later)
- Dedicated H.264 & HEVC Encoder2
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- NVIDIA GPU Boost (Automatically improves GPU engine throughput to maximize application performance)
2 This feature requires implementation by software applications and is not a stand-alone utility. Please contact quadrohelp@nvidia.com for details on availability.
NVIDIA CUDA Parallel Processing Architecture
- New RT (Ray Tracing) Core per SM
- Turing SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
- Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
- Mixed-precision (1-, 4-, 8-, 16-, 32- and 64-bit) computing
- API support includes:- CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- Configurable up to 96 KB of RAM (dedicated shared memory size per SM)
Advanced Display Features
- Support for any combination of four connected displays
- Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 @ 120 Hz, 5120x2880 @ 60Hz and 7680 x 4320 @ 60Hz)
- DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
- HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K @ 60Hz 10b/12b HEVC Decode, 4K @ 60Hz 10b HEVC Encode)
- HDCP 2.2 support over DisplayPort & HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
- NVIDIA® 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- NVIDIA® nView® multi-display technology
- Support for large-scale, ultra-high resolution visualization using the NVIDIA® SVS platform which includes NVIDIA® Mosaic, NVIDIA® Sync and NVIDIA® Warp/Blend technologies
DisplayPort and HDMI Digital Audio
- Support for the following audio modes: - Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- DisplayPort Data rates of 48 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
- HDMI Digital Audio Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
