Description

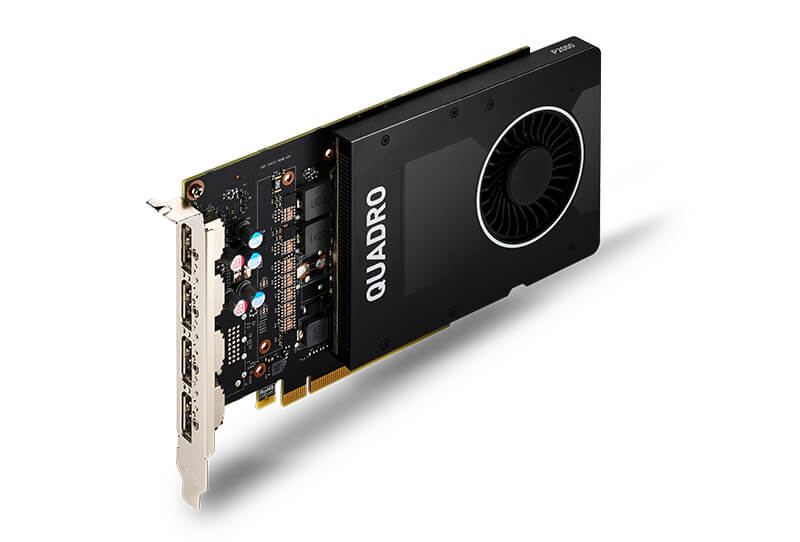

NVIDIA Quadro P2200
- Pascal GPU
- 1,280 NVIDIA® CUDA® Cores
- 5GB GDDR5x Memory
- Up to 200GB/s Memory Bandwidth
- 3.8 TFLOPS FP32 Performance
- Display Resolution:
4x 4096x2160 @ 120Hz
4x 5120x2880 @ 60Hz - Max. Power Consumption: 75W

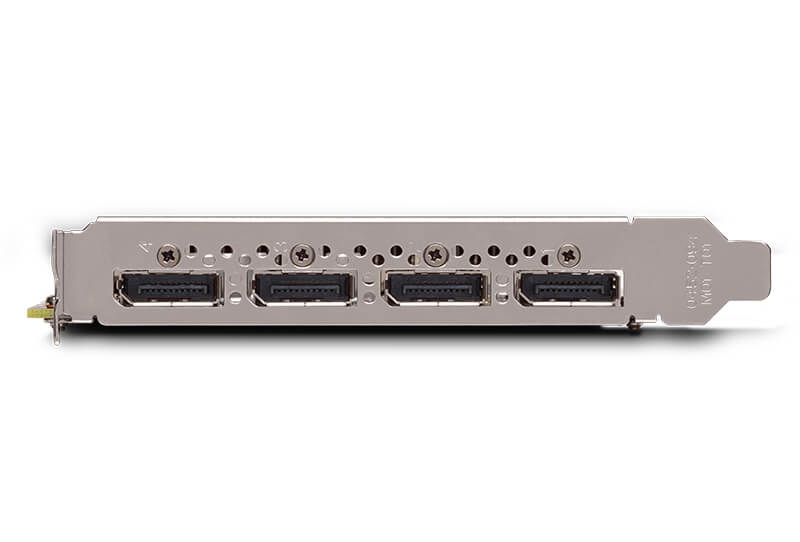

- 4x DisplayPort 1.4
- PCI Express 3.0 x16
Specifications
CUDA Parallel Processing cores | 1280 |
Frame Buffer Memory | 5 GB GDDR5x |
Peak Single Precision (FP32) Performance | Up to 3.8 TFLOPS |
Memory Interface | 160-bit |
Memory Bandwidth | Up to 200 GB/s |
Max Power Consumption | 75 W |
Graphics Bus | PCI Express 3.0 x 16 |
Display Connectors | DP 1.4 (4) |
Form Factor | 4.4” H x 7.9” L Single Slot |
Product Weight | 256 g |
Thermal Solution | Active |
Supported Platforms
- Microsoft Windows 10 (64-bit)
- Microsoft Windows 8 and 8.1 (64-bit)
- Microsoft Windows 7 (64-bit)
- Linux® - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA® GigaThread™ engine with 3 async copy engines
- Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1
- Dedicated H.264 & HEVC Encoder1
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- NVIDIA GPU Boost (Automatically improves GPU engine throughput to maximize application performance)
1This feature requires implementation by software applications and is not a stand-alone utility. Please contact quadrohelp@nvidia.com for details on availability.
NVIDIA CUDA Parallel Processing Architecture
- Pascal SM Architecture (streaming multi-processor design that delivers greater processing and efficiency
- Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
- API support includes:
- CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran - Configurable up to 96 KB of RAM (dedicated shared memory size per SM)
Advanced Display Features
- Support for any combination of four connected displays Four DisplayPort 1.4 (supporting resolutions such as 4096x2160 @ 120 Hz and 5120x2880 @ 60 Hz)
- DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
- HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K @ 60Hz 10b/12b HEVC Decode, 4K @ 60Hz 10b HEVC Encode)
- HDCP 2.2 support over DisplayPort & HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
- NVIDIA® 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- NVIDIA® nView® multi-display technology
- Support for NVIDIA® Quadro® Mosaic, NVIDIA® nView® multi-display technology, NVIDIA® Enterprise Management Tools
DisplayPort and HDMI Digital Audio
- Support for the following audio modes:- Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
