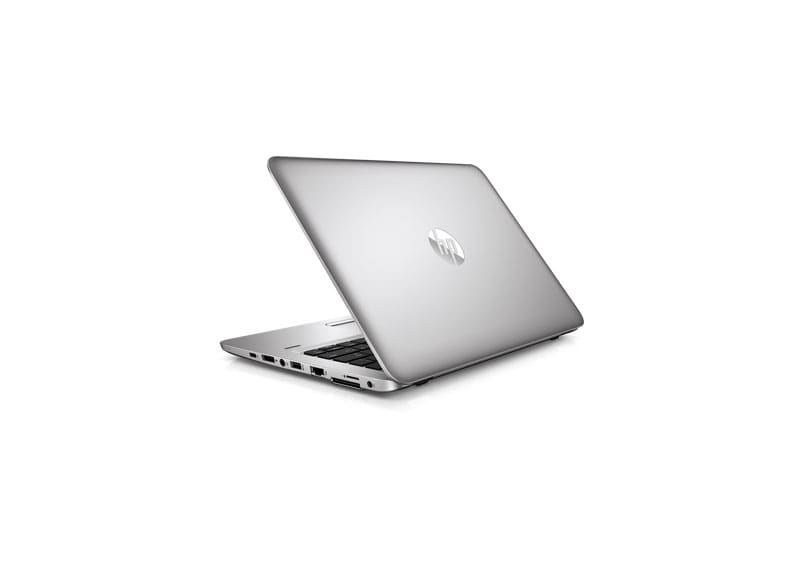

HP EliteBook 820 G2 Notebook PC

Processor

·         5th Generation Intel Core i7-5600U 2.6 GHz (max turbo frequency 3.2-GHz), 4 MB L3 Cache, 15W

Chipset

Chipset integrated with processor

Graphics

Integrated: Intel HD* Graphics 5500

Display

Internal:

Non-touch

·         12.5-in diagonal LED-backlit HD* anti-glare SVA flat (1366 x 768)

·         12.5-in diagonal LED-backlit HD* anti-glare SVA flat (1366 x 768) with camera

·         12.5-in diagonal LED-backlit FHD anti-glare UWVA ultra slim (1920 x 1080)

·         12.5-in diagonal LED-backlit FHD anti-glare UWVA ultra slim (1920 x 1080) with camera

Touch

·         12.5" diagonal LED-backlit FHD UWVA ultra slim (1920 x 1080) with camera

·         Touch panel has chemically-strengthened Corning Gorilla Glass 3 top cover

External:

Up to 32-bit per pixel color depth

VGA:

Port supports resolutions up to 1920 x 1200 external resolution @75 Hz

DisplayPort

Supports resolutions up to 3840 x 2160 @ 60Hz. Supports Multi-Stream Transport (MST) where three displays can be daisy chained with digital displays through DisplayPort Only. The full resolution of each display will be limited as you reach 3 displays due to the bandwidth limitations with a maximum resolution of:

·         2560 x 1600 @60Hz for 2 displays

·         1920 x 1200 @60Hz for 3 displays

Number of Displays supported

3 With Optional* 2013 UltraSlim Docking Station

Storage and drives

Primary storage bay:

Solid State Drive*

·         320 GB 7200 rpm SATA Hard Drive

·         500 GB 7200 rpm SATA Hard Drive

·         500 GB 7200 rpm Self-Encrypting Drive

·         500 GB 5400 rpm Self Encrypting Drive (FIPS-140-2)

·         1TB 5400rpm SATA Hard Drive

Solid State Drive*

·         120 GB M.2 Solid State Drive

·         128 GB SATA-3 Solid State Drive

·         180 GB SATA-3 Solid State Drive

·         180 GB SATA-3 Self-Encrypting Drive

·         240 GB SATA-3 Solid State Drive256 GB SATA-3 Solid State Drive

·         256 GB SATA-3 Self-Encrypting Drive

·         256 GB M.2 PCIe Solid State Drive

·         512 GB SATA-3 Solid State Drive

HP 3D DriveGuard (Windows only)

HP 3D DriveGuard mitigates the risk of hard drive failures, safeguarding your data when you are on the go by sensing sudden movement and protecting the hard drive. The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive.

Flash cache

·         32 GB M.2 (NGFF)

·         Optional 32 GB M.2 flash cache module support for Intel Smart Response Technology

Memory

Standard:

·         DDR3L SDRAM (1600 MHz)

·         Two SODIMM slots supporting dual-channel memory

·         4 GB Total System Memory (4 GB x 1)

·         8 GB Total System Memory (4 GB x 2)

·         8 GB Total System Memory (8 GB x 1)

·         16 GB Total System Memory (8 GB x 2)

Maximum:

Upgradeable to 16 GB with optional 8 GB SODIMMs in slots 1 and 2*

Dual-channel:

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

Networking / Communications

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

Broadband Wireless (WWAN)*

·         HP lt4112 LTE/HSPA+ Qualcomm Gobi 4G Module

·         HP lt4211 LTE/EV-DO/HSPA+ Qualcomm Gobi 4G Module**

·         HP hs3110 HSPA+ Mobile Broadband Module

Wireless LAN (WLAN)*

·         Intel Dual Band Wireless-AC 7265 802.11 ac (2 X 2) Wi-Fi + Bluetooth

·         Intel Dual Band Wireless-7265AN 802.11 a/b/g/n (2 X 2) Wi-Fi + Bluetooth

·         Intel Dual Band Wireless-AC 7265 802.11 ac (2 X 2) Wi-Fi + Bluetooth

Communications

Intel I218LM Gigabit* Network Connection (10/100/1000 NIC)

Audio

·         HD Audio with DTS Studio Sound

·         2 Integrated stereo speakers

·         Integrated dual-microphone array; located in the display

·         Function keys for microphone mute, volume up, volume down

·         Stereo headphone/line out

·         Stereo microphone/line in

Webcam

Optional* 720p HD** webcam

·         HD format (widescreen)

·         Supports videoconferencing (non-HD) and still image capture

·         High quality fixed focus lens

·         Video capture at various resolutions up to 1280 x 720 resolution (720 p) and up to 30 fps

·         M-JPEG compression supports higher frame rates for video capture and videoconferencing

·         Improved low light sensitivity

·         Improved dynamic range

·         Skype-ready***

Keyboard

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and includes an all-metal keyboard deck for greater rigidity, as well as HP DuraKeys. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. US and International key layouts are available. Backlit keyboard available as an option.

Pointing devices

Touchpad with scroll zone, on/off button with LED indicator, two-way scroll, two pick buttons.

Buttons and function keys

Separate discrete buttons provide easy access to WLAN on/off and speaker mute. Function keys provide control of features including: standby mode, display brightness, external display, microphone mute, volume down, and volume up.

Stand-alone power requirements (AC power)

Nominal operating: 19.5 V

Average operating power

·         Windows 7 (64-bit)

o    Integrated graphics: 4.75 W

·         Windows 8.1 (64-bit)

o    Integrated graphics: 4.26 W

Max operating power:

·         Discrete: < 90 W

·         UMA: < 65W

Temperature

·         Operating:

o    Not writing optical): 0° to 35° C (32° to 95° F)

o    Writing optical: 5° to 35° C (41° to 95° F)

·         Non-operating: -20° to 60° C (-4° to 140° F)

Relative humidity

·         Operating: 10% to 90%, non-condensing

·         Non-operating: 5% to 95%, 38.7° C (101.6° F) maximum wet bulb temperature

Shock

·         Operating: 40 G, 2 ms, half-sine

·         Non-operating: 200 G, 2 ms, half-sine

Random vibration

·         Operating: 0.75 g

·         Non-operating: 1.50 g

Altitude (unpressurized)

·         Operating: -15.24 to 3,048 m (-50 to 10,000 ft)

·         Non-operating: -15.24 to 12,192 m (-50 to 40,000 ft)

Planned industry standard certifications

·         UL: Yes

·         CSA: Yes

·         FCC compliance: Yes

·         ENERGY STAR: Select models*

·         EPEAT: Registered Gold in United States**

·         ICES: Yes

·         Australia/NZ A-Tick compliance: Yes

·         CCC: Yes

·         Japan VCCI compliance: Yes

·         KC: Yes

·         BSMI: Yes

·         CE Marking compliance: Yes

·         BNCI or BELUS: Yes

·         CIT: Yes

·         GOST: Yes

·         Saudi Arabian compliance (ICCP): Yes

·         SABS: Yes

·         UKRSERTCOMPUTER: Yes

Dimensions (w x d x h)

·         Touch: 31 x 21.53 x 2.46 cm (12.2 x 8.48 x 0.97 in)

·         Non-touch: 31 x 21.53 x 2.1 cm (12.2 x 8.48 x 0.83 in)

Weights

·         Touch: Starting at 1.52 kg (3.35 lbs)

·         Non-touch: Starting at 1.36 kg (2.94 lbs)

Ports

Ports

·         DisplayPort 1.2: One

·         USB 3.0 charging port: One

·         USB 3.0 port: Two

·         RJ-45 (ethernet): One

·         Side docking connector: One

·         Headphone/Microphone combo: One

·         AC port: One

Expansion slots

·         Media Card Reader

·         Supports SD, SDHC, SDXC

BIOS

·         HP BIOSphere¹

·         HP Sure Start

·         HP DriveLock | HP Automatic DriveLock

·         HP BIOS Protection²

·         HP Disk Sanitizer³

·         HP SpareKey⁴

·         BIOS Update via Network

·         Master Boot Record Security

·         Power On Authentication

·         Pre-Boot Security

·         Secure Erase⁵

·         Hybrid Boot

·         Measured Boot

·         Secure Boot

·         Absolute Persistence Module⁶

MultiMedia

·         Cyberlink Power DVD

·         CyberLink YouCam BE

Communications

·         HP Connection Manager with support for HP Mobile Connect (Windows 7 only)²

·         HP GPS and Location¹

·         HP Mobile Connect (Windows 8 only)²

·         HP Wireless Hotspot (Windows 8 only)³

·         Intel WiDi Software⁴

·         HP Roaming Alert

·         Intel My WiFi and Wireless Drivers

HP Value Add Software

·         Getting Started with Windows 8

·         HP 3D DriveGuard (Windows required)

·         HP ePrint Driver (HP Exclusive)⁵

·         HP Hotkey Support

·         HP PageLift

·         HP Recovery Manager (Windows 7 only)

·         HP Support Assistant

·         HP Recovery Disc Creator (Windows 7 only)

·         UEFI System Diagnostics W8

Manageability

·         HP Driver Packs¹

·         HP SoftPaq Download Manager (SDM)

·         HP System Software Manager (SSM)¹

·         HP BIOS Config Utility (BCU)¹

·         HP Client Catalog / HP CIK for Microsoft SCCM¹

·         LANDESK Management¹.

Standard security features

Security hardware

·         TPM Embedded Security Chip 2.0

·         Security lock slot

·         Fingerprint Reader

·         Integrated Smart Card Reader
