{"id":1809625514033,"title":"Mimosa B5-Lite, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","handle":"mimosa-b5-lite-5-ghz-25-dbi-1gbps-capable-ptp-backhaul-with-gps","description":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5 Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD, AUTO TDMA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e5150-5875 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eAntenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGain\u003c\/td\u003e\n\u003ctd\u003e25 dBi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBeamwidth ( 3dB )\u003c\/td\u003e\n\u003ctd\u003e8° ( HPOL and VPOL )\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eElevation Adjust\u003c\/td\u003e\n\u003ctd\u003e± 20° mechanical adjust\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFront-to-Back Ratio\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;30 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCross-Polar Isolation\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;20 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePolarization\u003c\/td\u003e\n\u003ctd\u003eDual-Linear (horizontal \u0026amp; vertical)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eDiameter: 442 mm (17.4\")\u003cbr\u003eDepth: 362 mm (14.3\") with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e4.9 kg (10.8 lbs) with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eSingle enclosure with radome\u003cbr\u003eOutdoor UV stabilized plastic\u003cbr\u003ePainted steel bracket plate\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e39 kg @ 160 km\/h (86 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003ePole mounting kit included for 30mm (1.18\") to 90mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-Free dedicated 2.4 GHz Wi-Fi management radio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for colocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory \u0026amp; Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407, IC RSS210, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003cp class=\"top20\"\u003e \u003c\/p\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-01-11T15:15:52+08:00","created_at":"2019-01-11T15:45:12+08:00","vendor":"Mimosa","type":"Backhaul 5GHz","tags":["50000-60000","5GHz","Mimosa"],"price":5404500,"price_min":5404500,"price_max":5404500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":14353705009201,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mimosa B5-Lite, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","public_title":null,"options":["Default Title"],"price":5404500,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":""}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5_main_17976db2-9961-4052-858c-857725e91948.png?v=1547192713","\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5_2dc39271-3a94-4a1a-9b7a-e521829c1120.png?v=1547192713"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5_main_17976db2-9961-4052-858c-857725e91948.png?v=1547192713","options":["Title"],"content":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5 Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD, AUTO TDMA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e5150-5875 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eAntenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGain\u003c\/td\u003e\n\u003ctd\u003e25 dBi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBeamwidth ( 3dB )\u003c\/td\u003e\n\u003ctd\u003e8° ( HPOL and VPOL )\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eElevation Adjust\u003c\/td\u003e\n\u003ctd\u003e± 20° mechanical adjust\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFront-to-Back Ratio\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;30 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCross-Polar Isolation\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;20 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePolarization\u003c\/td\u003e\n\u003ctd\u003eDual-Linear (horizontal \u0026amp; vertical)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eDiameter: 442 mm (17.4\")\u003cbr\u003eDepth: 362 mm (14.3\") with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e4.9 kg (10.8 lbs) with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eSingle enclosure with radome\u003cbr\u003eOutdoor UV stabilized plastic\u003cbr\u003ePainted steel bracket plate\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e39 kg @ 160 km\/h (86 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003ePole mounting kit included for 30mm (1.18\") to 90mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-Free dedicated 2.4 GHz Wi-Fi management radio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for colocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory \u0026amp; Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407, IC RSS210, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003cp class=\"top20\"\u003e \u003c\/p\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
translation missing: en.products.product.regular_price
₱54,045.00
translation missing: en.products.product.regular_price
₱54,045.00

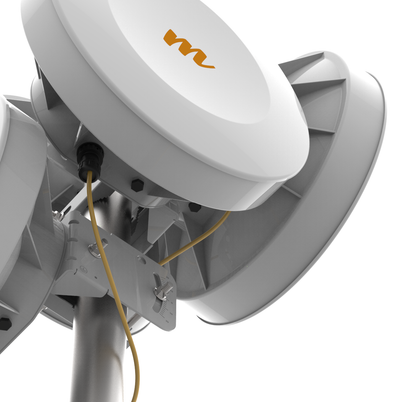

GIGABIT BACKHAUL MADE EASY
The Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.
*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions
B5 Specifications
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | < 1 ms in Auto Mode |
| Wireless Protocols | TDMA, TDMA-FD, AUTO TDMA |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 5150-5875 MHz restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Antenna | |
| Gain | 25 dBi |
| Beamwidth ( 3dB ) | 8° ( HPOL and VPOL ) |
| Elevation Adjust | ± 20° mechanical adjust |
| Front-to-Back Ratio | >30 dB |
| Cross-Polar Isolation | >20 dB |
| Polarization | Dual-Linear (horizontal & vertical) |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Diameter: 442 mm (17.4") Depth: 362 mm (14.3") with bracket |
| Weight | 4.9 kg (10.8 lbs) with bracket |
| Enclosure Characteristics | Single enclosure with radome Outdoor UV stabilized plastic Painted steel bracket plate |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 39 kg @ 160 km/h (86 lbs @ 100 mph) |
| Mounting | Pole mounting kit included for 30mm (1.18") to 90mm (3.54") OD pipes |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-Free dedicated 2.4 GHz Wi-Fi management radio |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory & Compliance | |
| Approvals | FCC Part 15.407, IC RSS210, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
APPLICATIONS
Building to Building
Relay Sites
Tower and Collocation Sites
ULTRA RUGGED
Carrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions
JUST MOUNT AND GO
The integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡
EASILY ADD NEW LINKS
Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.
DOUBLE RELIABILITY
Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!
INCREDIBLY FAST. INCREDIBLY FLEXIBLE.
Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.
MONITOR WITH EASE, AND SO MUCH MORE
Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.
CASE STUDIES
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
-
{"id":1809624858673,"title":"Mimosa B5c, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","handle":"copy-of-mimosa-b5-5-ghz-25-dbi-1gbps-capable-ptp-backhaul-with-gps","description":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5c Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth*\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e4900-6200 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eHeight: 267 mm (10.5\") Width: 158 mm (6.2\") Depth: 74 mm (3\")\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e1.6 kg (3.5 lbs)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eOutdoor UV stabilized plastic Aluminum mounting panel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e9.89 Kg @ 160 km\/h (21.8 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003eDual standard pole straps for 30 mm (1.18\") to 90 mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector Type\u003c\/td\u003e\n\u003ctd\u003eFemale Type N (x2), intended for use with dual polarization antenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool‡\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for collocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory + Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, 9,191,081, US 9,130,305 and patents pen\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-01-11T15:15:52+08:00","created_at":"2019-01-11T15:32:46+08:00","vendor":"Mimosa","type":"Backhaul 5GHz","tags":["30000-40000","5GHz","Mimosa"],"price":3737000,"price_min":3737000,"price_max":3737000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":14353700716593,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mimosa B5c, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","public_title":null,"options":["Default Title"],"price":3737000,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":""}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5c.png?v=1547192339"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5c.png?v=1547192339","options":["Title"],"content":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5c Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth*\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e4900-6200 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eHeight: 267 mm (10.5\") Width: 158 mm (6.2\") Depth: 74 mm (3\")\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e1.6 kg (3.5 lbs)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eOutdoor UV stabilized plastic Aluminum mounting panel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e9.89 Kg @ 160 km\/h (21.8 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003eDual standard pole straps for 30 mm (1.18\") to 90 mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConnector Type\u003c\/td\u003e\n\u003ctd\u003eFemale Type N (x2), intended for use with dual polarization antenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool‡\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for collocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory + Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, 9,191,081, US 9,130,305 and patents pen\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
translation missing: en.products.product.regular_price
₱37,370.00
translation missing: en.products.product.regular_price
₱37,370.00
GIGABIT BACKHAUL MADE EASY
The Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.
*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions
B5c Specifications
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | < 1 ms in Auto Mode |
| Wireless Protocols | TDMA, TDMA-FD |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth* | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 4900-6200 MHz restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 267 mm (10.5") Width: 158 mm (6.2") Depth: 74 mm (3") |
| Weight | 1.6 kg (3.5 lbs) |
| Enclosure Characteristics | Outdoor UV stabilized plastic Aluminum mounting panel |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph) |
| Mounting | Dual standard pole straps for 30 mm (1.18") to 90 mm (3.54") OD pipes |
| Connector Type | Female Type N (x2), intended for use with dual polarization antenna |
* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool‡ |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for collocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
‡ U.S. Pat. No. US 9,179,336, 9,191,081, US 9,130,305 and patents pen
APPLICATIONS
Building to Building
Relay Sites
Tower and Collocation Sites
ULTRA RUGGED
Carrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions
JUST MOUNT AND GO
The integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡
EASILY ADD NEW LINKS
Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.
DOUBLE RELIABILITY
Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!
INCREDIBLY FAST. INCREDIBLY FLEXIBLE.
Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.
MONITOR WITH EASE, AND SO MUCH MORE
Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.
CASE STUDIES
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
-
{"id":1809624006705,"title":"Mimosa B5, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","handle":"mimosa-b5-5-ghz-25-dbi-1gbps-capable-ptp-backhaul-with-gps","description":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5 Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD, AUTO TDMA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e5150-5875 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eAntenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGain\u003c\/td\u003e\n\u003ctd\u003e25 dBi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBeamwidth ( 3dB )\u003c\/td\u003e\n\u003ctd\u003e8° ( HPOL and VPOL )\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eElevation Adjust\u003c\/td\u003e\n\u003ctd\u003e± 20° mechanical adjust\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFront-to-Back Ratio\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;30 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCross-Polar Isolation\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;20 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePolarization\u003c\/td\u003e\n\u003ctd\u003eDual-Linear (horizontal \u0026amp; vertical)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eDiameter: 442 mm (17.4\")\u003cbr\u003eDepth: 362 mm (14.3\") with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e4.9 kg (10.8 lbs) with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eSingle enclosure with radome\u003cbr\u003eOutdoor UV stabilized plastic\u003cbr\u003ePainted steel bracket plate\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e39 kg @ 160 km\/h (86 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003ePole mounting kit included for 30mm (1.18\") to 90mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-Free dedicated 2.4 GHz Wi-Fi management radio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for colocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory \u0026amp; Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407, IC RSS210, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003cp class=\"top20\"\u003e \u003c\/p\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-01-11T15:15:52+08:00","created_at":"2019-01-11T15:23:02+08:00","vendor":"Mimosa","type":"Backhaul 5GHz","tags":["50000-60000","5GHz","Mimosa"],"price":5404500,"price_min":5404500,"price_max":5404500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":14353696423985,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mimosa B5, 5 GHz, 25 dBi, 1Gbps capable PTP backhaul with GPS","public_title":null,"options":["Default Title"],"price":5404500,"weight":0,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":""}],"images":["\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5_main.png?v=1547191395","\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5.png?v=1547192512"],"featured_image":"\/\/cdn2.shopify.com\/s\/files\/1\/1700\/9937\/products\/b5_main.png?v=1547191395","options":["Title"],"content":"\u003ch1 class=\"uppercase\"\u003eGIGABIT BACKHAUL MADE EASY\u003c\/h1\u003e\n\u003cp\u003e\u003csmall\u003e\u003c\/small\u003eThe Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.\u003c\/p\u003e\n\u003cp class=\"small\"\u003e*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions\u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003cp class=\"small\"\u003e \u003c\/p\u003e\n\u003ch1 class=\"title\"\u003eB5 Specifications\u003c\/h1\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePerformance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Throughput\u003c\/td\u003e\n\u003ctd\u003eUp to 1.5 Gbps IP aggregate UL\/DL (1.7 Gbps PHY)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLow Latency\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 1 ms in Auto Mode\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWireless Protocols\u003c\/td\u003e\n\u003ctd\u003eTDMA, TDMA-FD, AUTO TDMA\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRadio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMIMO \u0026amp; Modulation\u003c\/td\u003e\n\u003ctd\u003e4x4:4 MIMO OFDM up to 256QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBandwidth\u003c\/td\u003e\n\u003ctd\u003eSingle or Dual 20\/40\/80 MHz channels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Range\u003c\/td\u003e\n\u003ctd\u003e5150-5875 MHz restricted by country of operation (*new* US\/FCC 5600-5650 support)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Output Power\u003c\/td\u003e\n\u003ctd\u003e30 dBm (2-stream), 27 dBm (4-stream)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSensitivity ( MCS 0 )\u003c\/td\u003e\n\u003ctd\u003e-87 dBm @ 80 MHz\u003cbr\u003e-90 dBm @ 40 MHz\u003cbr\u003e-93 dBm @ 20 MHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eAntenna\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGain\u003c\/td\u003e\n\u003ctd\u003e25 dBi\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBeamwidth ( 3dB )\u003c\/td\u003e\n\u003ctd\u003e8° ( HPOL and VPOL )\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eElevation Adjust\u003c\/td\u003e\n\u003ctd\u003e± 20° mechanical adjust\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFront-to-Back Ratio\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;30 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCross-Polar Isolation\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;20 dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePolarization\u003c\/td\u003e\n\u003ctd\u003eDual-Linear (horizontal \u0026amp; vertical)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePower\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Power Consumption\u003c\/td\u003e\n\u003ctd\u003e20W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Power Method\u003c\/td\u003e\n\u003ctd\u003e48 V DC 802.3 at compliant power injectors\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSystem Lightning \u0026amp; ESD Protection\u003c\/td\u003e\n\u003ctd\u003e6 kV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePoE Power Supply\u003c\/td\u003e\n\u003ctd\u003ePassive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003ePhysical\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions\u003c\/td\u003e\n\u003ctd\u003eDiameter: 442 mm (17.4\")\u003cbr\u003eDepth: 362 mm (14.3\") with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight\u003c\/td\u003e\n\u003ctd\u003e4.9 kg (10.8 lbs) with bracket\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEnclosure Characteristics\u003c\/td\u003e\n\u003ctd\u003eSingle enclosure with radome\u003cbr\u003eOutdoor UV stabilized plastic\u003cbr\u003ePainted steel bracket plate\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Survivability\u003c\/td\u003e\n\u003ctd\u003e200 km\/h (125 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWind Loading\u003c\/td\u003e\n\u003ctd\u003e39 kg @ 160 km\/h (86 lbs @ 100 mph)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting\u003c\/td\u003e\n\u003ctd\u003ePole mounting kit included for 30mm (1.18\") to 90mm (3.54\") OD pipes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-md-6\"\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eEnvironmental\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Ingress Protection Rating\u003c\/td\u003e\n\u003ctd\u003eIP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Temperature\u003c\/td\u003e\n\u003ctd\u003e-40°C to +55°C (-40°F to 131°F)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Humidity\u003c\/td\u003e\n\u003ctd\u003e5 to 100% condensing\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOperating Altitude\u003c\/td\u003e\n\u003ctd\u003e4420 m (14500') maximum\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eShock \u0026amp; Vibration\u003c\/td\u003e\n\u003ctd\u003eETS 300-019-2-4 class 4M5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eFeatures\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eGigabit Ethernet\u003c\/td\u003e\n\u003ctd\u003e10\/100\/1000-BASE-T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDual Link Operation\u003c\/td\u003e\n\u003ctd\u003e2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eManagement Services\u003c\/td\u003e\n\u003ctd\u003eMimosa cloud monitoring and management SNMPv2 \u0026amp; Syslog legacy monitoring HTTPS HTML 5 based Web UI\u003cbr\u003e2.4 GHz 802.11b\/g\/n radio for local management access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Antenna Alignment\u003c\/td\u003e\n\u003ctd\u003eHands-Free dedicated 2.4 GHz Wi-Fi management radio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSmart Spectrum Management\u003c\/td\u003e\n\u003ctd\u003eActive scan monitors\/logs ongoing RF interference across channels (no service impact)\u003cbr\u003eDynamic auto-optimization of channel and bandwidth use\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSecurity\u003c\/td\u003e\n\u003ctd\u003e128-bit AES PSK with hardware acceleration\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQoS\u003c\/td\u003e\n\u003ctd\u003eSupports 4 pre-configured QoS levels\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGPS Location\u003c\/td\u003e\n\u003ctd\u003eGNSS-1 (GPS + GLONASS)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eColocation Synchronization\u003c\/td\u003e\n\u003ctd\u003e1PPS GPS TX\/RX synchronization for colocated co-channel radios Adjustable up\/downstream bandwidth ratio\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\"\u003eRegulatory \u0026amp; Compliance\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eApprovals\u003c\/td\u003e\n\u003ctd\u003eFCC Part 15.407, IC RSS210, CE,\u003cbr\u003eETSI 301 893\/302 502\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRoHS Compliance\u003c\/td\u003e\n\u003ctd\u003eYes\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSafety\u003c\/td\u003e\n\u003ctd\u003eUL\/EC\/EN\/ 60950-1 + CSA-22.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp class=\"top20\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003cp class=\"top20\"\u003e \u003c\/p\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row row-centered applications top60\"\u003e\n\u003ch1 class=\"uppercase\"\u003eAPPLICATIONS\u003c\/h1\u003e\n\u003cdiv class=\"app-icons\"\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_93xAUTO_stretch_center-center\/icon_building@2x.png?mtime=20170315212745\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_building@2x.png?mtime=20170315212745\" alt=\"Icon Building@2X\" class=\"\"\u003e\n\u003cp\u003eBuilding to Building\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_81xAUTO_stretch_center-center\/icon_relay@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_relay@2x.png?mtime=20170315212744\" alt=\"Icon Relay@2X\" class=\"\"\u003e\n\u003cp\u003eRelay Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-8 col-centered col-sm-4 \"\u003e\n\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_68xAUTO_stretch_center-center\/icon_tower@2x.png?mtime=20170315212744\" srcset=\"https:\/\/mimosa.co\/uploads\/icon_tower@2x.png?mtime=20170315212744\" alt=\"Icon Tower@2X\" class=\"\"\u003e\n\u003cp\u003eTower and Collocation Sites\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container white\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 col-sm-push-6\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eULTRA RUGGED\u003c\/h1\u003e\n\u003cp\u003eCarrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"background-section top140\"\u003e\n\u003cdiv class=\"container \"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eJUST MOUNT AND GO\u003c\/h1\u003e\n\u003cp\u003eThe integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eEASILY ADD NEW LINKS\u003c\/h1\u003e\n\u003cp\u003eTypical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/mimosa.co\/products\/b5#tdma-collocation\"\u003eRead more about it \u0026gt;\u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-6 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/b5_addnewlinks.png?mtime=20170316043456\" alt=\"B5 Addnewlinks\" class=\"\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_669xAUTO_stretch_center-center\/b5_double_reliability@2x.png?mtime=20170316043706\" srcset=\"https:\/\/mimosa.co\/uploads\/b5_double_reliability@2x.png?mtime=20170316043706\" alt=\"B5 Double Reliability@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eDOUBLE RELIABILITY\u003c\/h1\u003e\n\u003cp\u003eUnlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/business-home.png?mtime=20170316054254\" alt=\"Business Home\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eINCREDIBLY FAST. INCREDIBLY FLEXIBLE.\u003c\/h1\u003e\n\u003cp\u003eAwarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75\/25 traffic direction reservation.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top140\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 \"\u003e\u003cimg src=\"https:\/\/mimosa.co\/uploads\/_624xAUTO_stretch_center-center\/moniter@2x.png?mtime=20170316054404\" srcset=\"https:\/\/mimosa.co\/uploads\/moniter@2x.png?mtime=20170316054404\" alt=\"Moniter@2X\" class=\"\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-xs-12 col-sm-8 col-sm-offset-2 text-center\"\u003e\n\u003ch1 class=\"uppercase pad10\"\u003eMONITOR WITH EASE, AND SO MUCH MORE\u003c\/h1\u003e\n\u003cp\u003eImmediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv id=\"tdma-collocation\" class=\"pad80\"\u003e\n\u003cdiv class=\"row whitePaperTile bottom50\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"container\"\u003e\n\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-xs-12 pad80\"\u003e\n\u003ch1 class=\"center uppercase bottom20\"\u003eCASE STUDIES\u003c\/h1\u003e\n\u003cdiv class=\"row solution-case-studies\"\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/prairie-hills\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eBIG THROUGHPUT TO THE PLAINS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePRAIRIE HILLS WIRELESS - NEBRASKA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003ePrairie Hills Wireless Uses Spectrum Reuse Synchronization in 5G GigaPoP and MicroPoPs\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/stephouse-selects-mimosa-for-ultra-broadband-fixed-wireless-network\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eTAKING ON THE BIG GUYS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003ePORTLAND, OR\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eStephouse Selects Mimosa for Ultra-Broadband Fixed Wireless Network\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-4 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/xcien-switches-to-mimosa-wireless-for-no-limit-internet\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eXCIEN SWITCHES TO MIMOSA WIRELESS\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eGUADALUPE, NL, MEXICO\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-sm-8 col-xs-12\"\u003e\u003ca href=\"https:\/\/mimosa.co\/case-studies\/dillon-beach-internet-lights-up-california-beach-town-with-mimosa\"\u003e\n\u003cdiv class=\"solution-card2\"\u003e\n\u003cdiv class=\"table-card2\"\u003e\n\u003cdiv class=\"text-center table-center\"\u003e\n\u003cdiv class=\"case-title\"\u003eDILLON BEACH INTERNET LIGHTS UP CALIFORNIA BEACH TOWN WITH MIMOSA\u003c\/div\u003e\n\u003cdiv class=\"case-subtitle\"\u003eDILLON BEACH, CA, USA\u003c\/div\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eResidents Flock to New Ultra Broadband, 5G Fixed Wireless for Fiber-Fast Surfing \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/a\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"container top60\"\u003e\n\u003cdiv class=\"text-center\"\u003e\n\u003cp class=\"small\"\u003e‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"data-sheets\"\u003e\n\u003cdiv class=\"center data-text\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
translation missing: en.products.product.regular_price
₱54,045.00
translation missing: en.products.product.regular_price
₱54,045.00
GIGABIT BACKHAUL MADE EASY
The Mimosa B5 backhaul is the easiest to deploy and highest capacity unlicensed 5 GHz backhaul solution for short and mid-range link applications*.
*Approximately 0 to 10km, distances and speeds may vary due to local regulatory restrictions
B5 Specifications
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | < 1 ms in Auto Mode |
| Wireless Protocols | TDMA, TDMA-FD, AUTO TDMA |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or Dual 20/40/80 MHz channels |
| Frequency Range | 5150-5875 MHz restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm (2-stream), 27 dBm (4-stream) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Antenna | |
| Gain | 25 dBi |
| Beamwidth ( 3dB ) | 8° ( HPOL and VPOL ) |
| Elevation Adjust | ± 20° mechanical adjust |
| Front-to-Back Ratio | >30 dB |
| Cross-Polar Isolation | >20 dB |
| Polarization | Dual-Linear (horizontal & vertical) |
| Power | |
| Max Power Consumption | 20W |
| System Power Method | 48 V DC 802.3 at compliant power injectors |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Diameter: 442 mm (17.4") Depth: 362 mm (14.3") with bracket |
| Weight | 4.9 kg (10.8 lbs) with bracket |
| Enclosure Characteristics | Single enclosure with radome Outdoor UV stabilized plastic Painted steel bracket plate |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 39 kg @ 160 km/h (86 lbs @ 100 mph) |
| Mounting | Pole mounting kit included for 30mm (1.18") to 90mm (3.54") OD pipes |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation | 2 independent dual-stream radios operating on non-contiguous frequencies Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment | Hands-Free dedicated 2.4 GHz Wi-Fi management radio |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory & Compliance | |
| Approvals | FCC Part 15.407, IC RSS210, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
APPLICATIONS
Building to Building
Relay Sites
Tower and Collocation Sites
ULTRA RUGGED
Carrier grade IP67 design allows the B5 and the B5c to withstand the harshest of environmental conditions
JUST MOUNT AND GO
The integrated high gain antenna, and super easy quick mount lets you install the B5 in minutes, and accurately aim it with your smartphone via Wi-Fi.‡
EASILY ADD NEW LINKS
Typical backhaul solutions waste spectrum with every link installed and impacting network capacity. Unique high precision GPS Sync technology allows Mimosa B5 and B5c products to reuse the same channel network wide, and up to 4 links can auto-coordinate.
DOUBLE RELIABILITY
Unlicensed spectrum can be unpredictable. So Mimosa custom engineered unique multi-channel and auto-everything technology to protect your links when you encounter interference. The B5 and B5c automatically keep your links up with two independent operating channels, and adapting using our auto-everything technology to resolve problems proactively to deliver optimal link speed and reliability. It's like 2 smart links in a single radio!
INCREDIBLY FAST. INCREDIBLY FLEXIBLE.
Awarded the fastest unlicensed backhaul in the industry, the B5 and B5c also provide extensive bandwidth control options. Dynamic modes automatically adapt with traffic demand and provide ultra low ~1ms link latency for sensitive voice and video communications services. While reserved bandwidth and GPS sync modes allow symmetric or 75/25 traffic direction reservation.
MONITOR WITH EASE, AND SO MUCH MORE
Immediately after install, your links are ready to be monitored via the free Mimosa Cloud service. With vast data collection and analysis, assessing link health and identifying potential problems has never been easier.
CASE STUDIES
‡ U.S. Pat. No. US 9,179,336, US 9,362,629, US 9,191,081, US 9,130,305 and patents pending.
